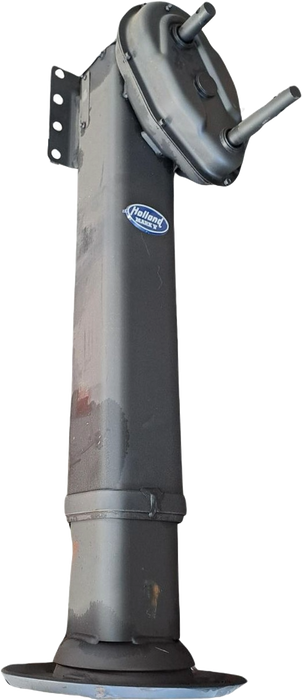

1006308 - Mark V 17" 2-Speed Side Mount Landing Gear Trailer Jack

The Mark V 17" 2-Speed Side Mount Landing Gear is engineered for maximum strength, smooth operation, and long-term durability on heavy-duty trailers. Designed to meet the demands of construction, agricultural, and industrial hauling, this landing gear delivers reliable support during loading, unloading, and trailer storage.

With a 2-speed gearbox, operators can quickly switch between high-speed travel and low-speed precision lifting, saving time and reducing effort. The rugged welded steel construction and side-mount design make it an ideal replacement or upgrade for any Felling Trailer.

Key Features & Benefits

• Heavy-Duty Load Capacity
  • Lift Capacity: 62,500 lbs
  • Load Capacity: 200,000 lbs
  • Slide Load Capacity: 32,000 lbs
• 2-Speed Gearbox
  • Fast extension when unloaded
  • Controlled lifting under heavy load
• 17" Travel Length
  • 32.00" retracted
  • 49.50 extended
• Side Mount Design
  • Direct OEM-style fit for Felling Trailers
  • Secure mounting for long-term use
• Durable Steel Construction
  • Built for harsh jobsite and road conditions
• OEM Felling Trailer Part
  • Designed to meet original factory specifications
