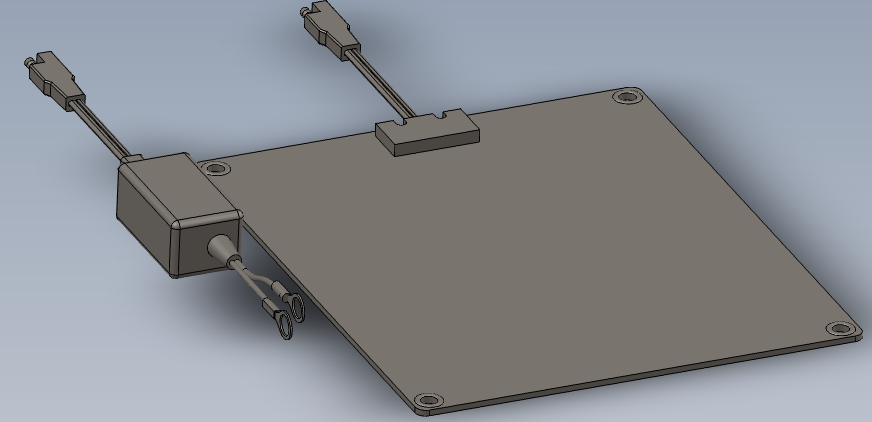

2023773 - 12V Solar Battery Charger Panel with Lead Wires & Diode Protection

Keep your batteries charged and ready with the 2023773 12V Solar Charger. Designed for continuous maintenance charging, this solar panel is ideal for trailers, RVs, marine equipment, and off-grid systems. The compact and durable design comes pre-wired with positive and negative leads and features a built-in diode for reverse current protection.

Features:

• Input Voltage: 16.5 Volts max

• Output: 12V trickle charge (ideal for maintaining battery health)

• Integrated blocking diode to prevent battery drain

• Pre-wired with positive and negative leads for easy installation

• Four-corner mounting holes (Ø 0.324") for secure placement

• Compact, low-profile design suitable for tight spaces

Specifications:

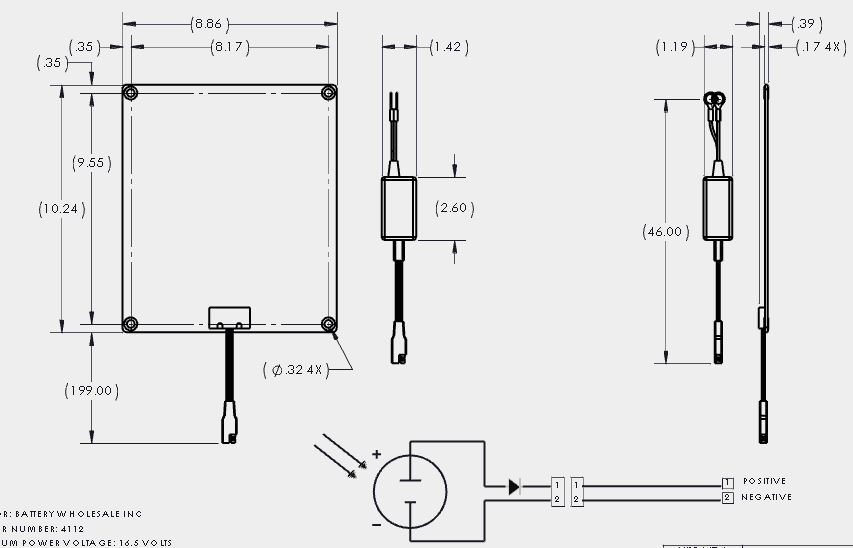

• Dimensions: 10.24" x 8.86" x 0.174"

• Wire Length: ~46.00" total with connector ends

• Connector Type: Quick connect push-on terminals

• Mounting Hole Diameter: 0.324"

• Operating Voltage: 16.5V (open circuit)

• Weight: Lightweight and easy to mount
