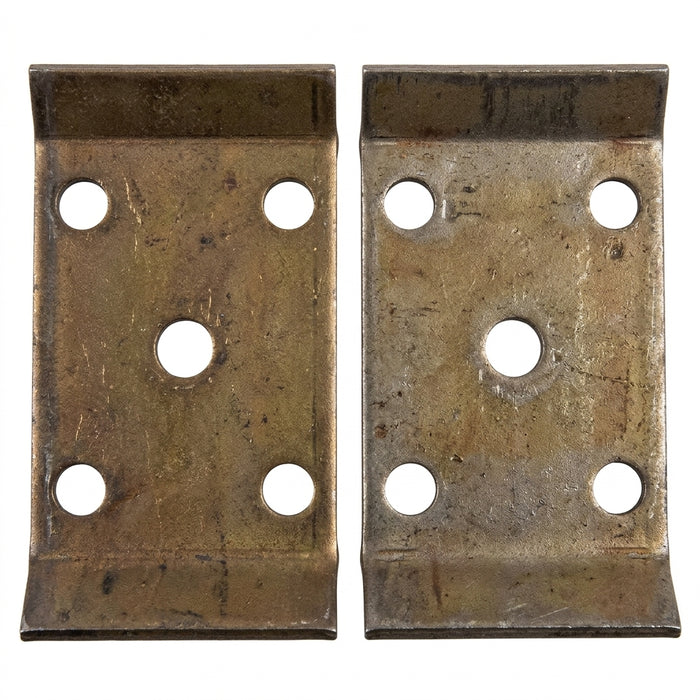

117581 - U-Bolt Plate

by Dexter
Original price $22.95 - Original price $22.95
Original price
$22.95
$22.95 - $22.95
Current price $22.95

The 117581 U-Bolt Plate is a heavy-duty mounting plate engineered to evenly distribute clamping forces from U-bolts across your trailer’s leaf spring pack and axle housing. Crafted from precision-stamped steel and protected with a corrosion-resistant finish, this plate maintains proper suspension alignment, prevents spring distortion, and enhances the longevity of your trailer suspension under heavy loads.

Features:

  • Precision-stamped high-strength steel for consistent load distribution
  • Corrosion-resistant zinc plating to guard against rust
  • Optimized hole pattern to fit common U-bolt sizes (up to 3.5″ inside width)
  • Smooth, deburred edges for safe handling and easy installation
  • Ideal for new builds, suspension rebuilds, or component upgrades

Specifications:

  • Part Number: 117581
  • Material: Cold-rolled steel
  • Finish: Zinc-plated
  • Plate Dimensions: 5″ × 3″ × ⅜″ (length × width × thickness)
  • Hole Pattern: 3.25″ center-to-center spacing
  • Thickness: 0.375″
  • Application: Distributes U-bolt load on leaf spring packs and axle mounts

Fitment:

  • Compatible with most 3,500–7,000 lb trailer axles
  • Works with standard round and square leaf spring assemblies
  • Pairs with U-bolts such as 11-65, 11-70, or any U-bolt matching the 3.25″ hole spacing
