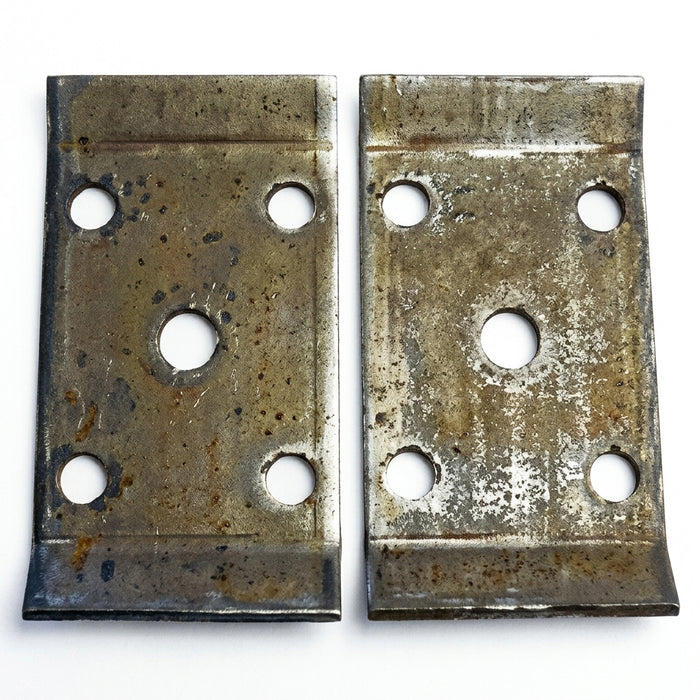

117594 - U-Bolt Plate

by Dexter
Original price $7.95 - Original price $7.95
Original price
$7.95
$7.95 - $7.95
Current price $7.95

The 117594 U-Bolt Plate is a robust mounting plate engineered to evenly distribute the clamping force of U-bolts across your trailer’s leaf spring pack and axle housing. Constructed from precision-stamped steel with a corrosion-resistant finish, this plate ensures consistent suspension alignment, prevents spring distortion, and prolongs component life under demanding load conditions.

Features:

  • High-strength stamped steel for uniform load distribution
  • Corrosion-resistant zinc plating for long-term durability
  • Optimized hole pattern to fit standard U-bolt sizes (up to 4″ inside width)
  • Smooth, deburred edges for safe handling and straightforward installation
  • Suitable for new builds, suspension rebuilds, or upgrade kits

Specifications:

  • Part Number: 117594
  • Material: Cold-rolled steel
  • Finish: Zinc-plated
  • Plate Dimensions: 6″ × 3.5″ × ⅜″ (length × width × thickness)
  • Hole Pattern: 4″ center-to-center spacing
  • Thickness: 0.375″
  • Application: Distributes U-bolt load on leaf spring packs and axle mounts

Fitment:

  • Compatible with most 5,200–10,000 lb trailer axles
  • Works with standard round and square leaf spring assemblies
  • Pairs with U-bolts such as 11-65, 11-70, or any U-bolt matching the 4″ hole spacing
