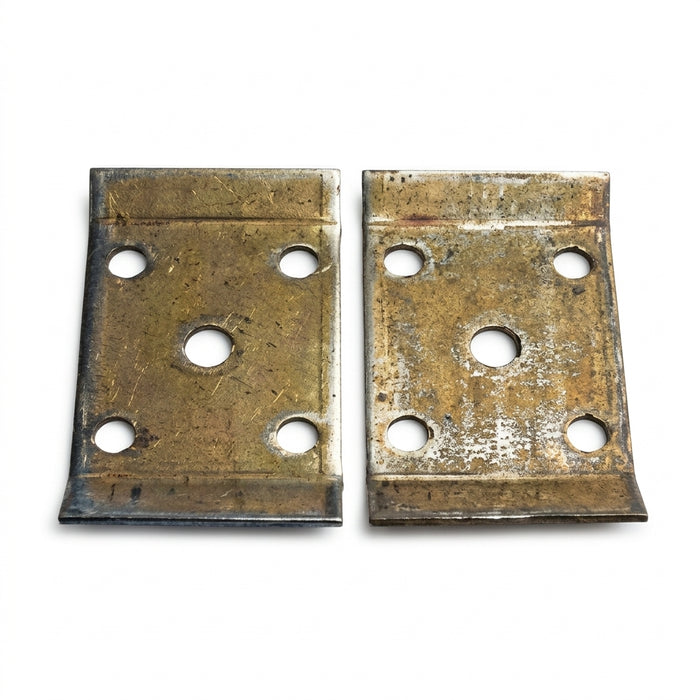

117594-G - Galvanized U-Bolt Plate

by Dexter
Original price $11.95 - Original price $11.95
Original price
$11.95
$11.95 - $11.95
Current price $11.95

The 117594-G Galvanized U-Bolt Plate is a heavy-duty mounting plate designed to evenly distribute U-bolt clamping forces across your trailer’s leaf spring pack and axle. Its hot-dip galvanized finish delivers exceptional corrosion resistance, making it perfect for marine, agricultural, and other harsh environments where rust protection is critical.

Features:

  • Hot-dip galvanized (ASTM A153) coating for superior rust and corrosion resistance
  • Precision-stamped high-strength steel for uniform load distribution
  • Optimized hole pattern to fit standard U-bolt sizes (4" inside-width)
  • Smooth, deburred edges for safe handling and installation
  • Ideal for new trailer builds, suspension rebuilds, or upgrade kits

Specifications:

  • Part Number: 117594-G
  • Material: Cold-rolled steel, hot-dip galvanized
  • Plate Dimensions: 6″ × 3.5″ × ⅜″ (length × width × thickness)
  • Hole Pattern: 4″ center-to-center spacing
  • Thickness: 0.375″
  • Finish: Galvanized per ASTM A153
  • Application: Distributes U-bolt load on leaf spring packs and axle mounts in corrosive environments

Fitment:

  • Compatible with most 5,200–10,000 lb trailer axles
  • Works with round and square leaf spring assemblies using 4″ U-bolt spacing
  • Pairs with galvanized U-bolts such as part numbers 11-70-G or custom 4″ inside-width U-bolts
