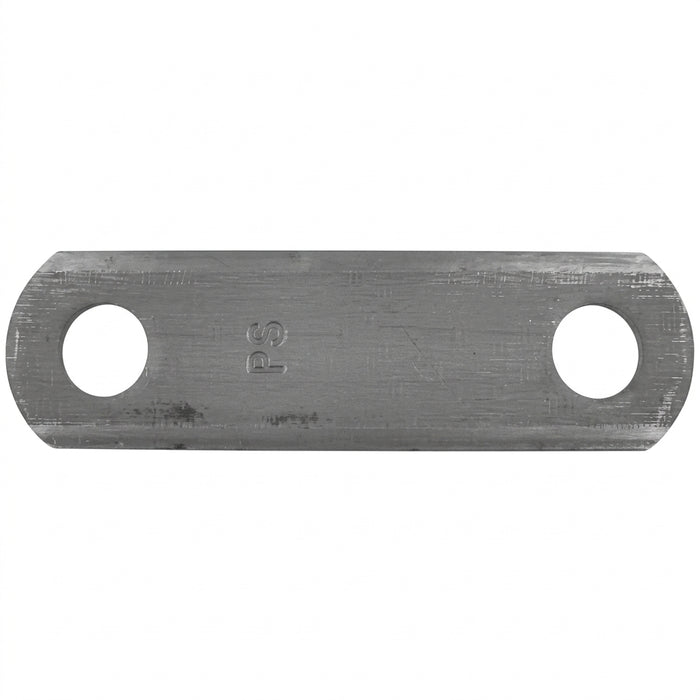

115208 - Shackle Strap 3-1/8" Center to Center

The 115208 Shackle Strap is a heavy-duty suspension connector engineered to link leaf spring shackles to trailer hangers or frames. With a 3-1/8″ (79.4 mm) center-to-center hole spacing, this precision-formed steel strap maintains proper spring alignment and provides smooth articulation under load. Ideal for utility, cargo, and equipment trailers.

Features:

• Precision-bent steel for accurate spring alignment
• 3-1/8″ center-to-center hole spacing for non-standard spring setups
• Powder-coated finish to resist corrosion
• Hot-rolled steel construction for maximum strength
• Easy bolt-on installation with standard 5/8″ hardware

Specifications:

• Part Number: 115208
• Material: Hot-rolled steel
• Finish: Black powder coat
• Center-to-Center: 3-1/8″ (79.4 mm)
• Hole Diameter: 5/8″ (16 mm) to fit standard shackle bolts
• Thickness: 3/16″ (4.8 mm)
• Overall Length: 7″ (178 mm)
• Application: Leaf spring shackle connection

Fitment:

• Suited for 3,500–10,000 lb leaf spring suspensions with 3-1/8″ shackle spacing
• Compatible with utility, cargo, equipment, and flatbed trailers
• Works with standard 5/8″ shackle bolts, nuts, and bushings
