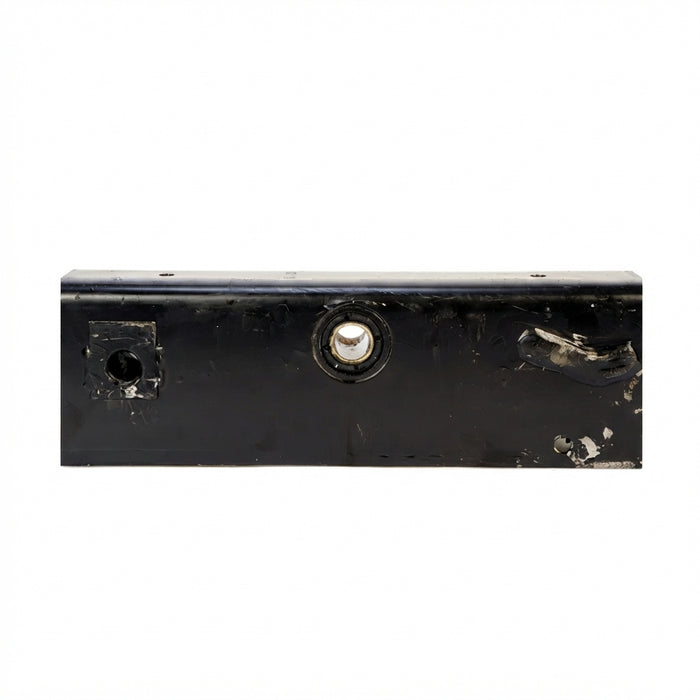

13-108-3 - Equalizer
The 13-108-3 Dexter Equalizer is specifically engineered for use with 3″ wide slipper-style leaf springs on heavy-duty 10,000–15,000 lb trailer axles. Featuring built-in support flanges, this equalizer provides optimal load distribution and smooth articulation between tandem axles. Its universal design allows installation on either the right or left side of your trailer suspension.
Features:
-
Designed for 3″ wide slipper springs on 10K–15K axles
-
Universal fit for right or left side installation
-
Built-in support flange to stabilize slipper spring eye
-
Precision-bored steel eyes for smooth pivot action
-
Heavy-duty powder-coat finish for corrosion resistance
Specifications:
| Measurement | Value |
|---|---|
| Axle Spacing (C–C) | 42¼″ (1073 mm) |
| Overall Length | 18⅜″ (467 mm) |
| Center Hole I.D. | 1⅛″ (28.6 mm) |
| Spring Eye Hole I.D. | 1″ (25.4 mm) |
| Equalizer Body Width | 3″ (76.2 mm) to match spring |
| Material & Finish | High-strength steel, black powder coat |
Fitment & Applications:
-
Capacity: Suitable for tandem axle trailers rated 10,000 – 15,000 lb
-
Spring Type: 3″ wide slipper springs (no additional flanges required)
-
Axle Centers: Designed for 42¼″ center-to-center tandem spacing
-
Used on heavy-duty utility, equipment, and commercial trailers
