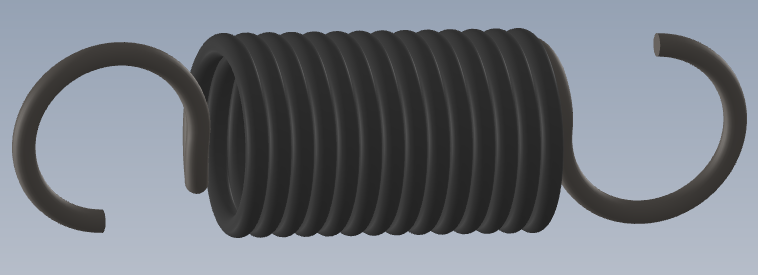

2002852 - 24 LBF/IN Tension Spring

2002852 - 24 LBF/IN Tension Spring

by Felling Trailers Parts Store
$5.95 - $5.95
$5.95
$5.95 - $5.95
$5.95

The 2002852 – 24 LBF/IN Tension Spring is a high-performance component designed for applications requiring reliable tension and consistent performance. Crafted from durable music wire, this spring is engineered to withstand demanding conditions, making it ideal for heavy-duty mechanical applications, trailers, and custom equipment builds.

Key Features

  • Spring Rate: 24.00 LBF/IN

  • Initial Tension: 5.00 LBS

  • Maximum Deflection: 2.20 inches

  • Maximum Load Capacity: 58 LBS

  • Material: High-quality music wire for enhanced durability

  • Dimensions:

    • Length: 3.50 inches

    • Wire Diameter: 0.115 inches

    • Overall Diameter: 1.00 inch

Applications

This tension spring is suitable for a variety of applications, including:

  • Utility trailers

  • Equipment trailers

  • Agricultural machinery

  • Construction equipment

  • Custom mechanical assemblies requiring precise tension control
