2003828 - 7K Electric Axle, 93.75" HF

The 2003828 – 7K Electric Brake Trailer Axle is a heavy-duty axle designed to provide reliable performance for various trailer applications. With a 93.75-inch hub face and 76.00-inch spring center, this axle is engineered for strength and durability, making it ideal for utility, equipment, and livestock trailers. Its electric brake system ensures dependable stopping power, enhancing safety during transit.

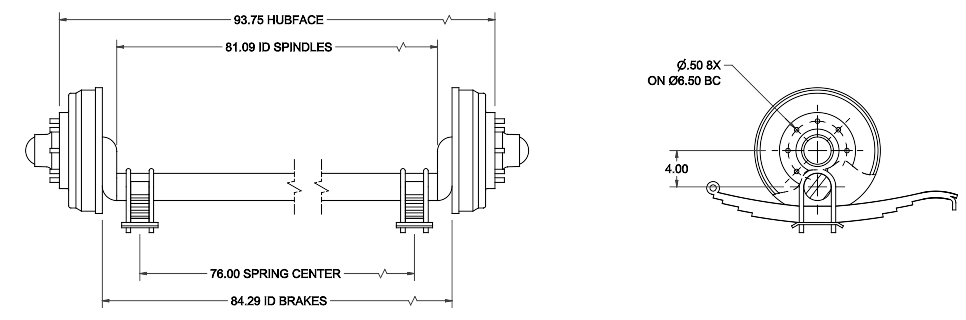

Key Specifications

• Hub Face (HF): 93.75 inches

• Spring Center (SC): 76.00 inches

• Spindle Inner Diameter: 81.09 mm

• Brake Inner Diameter: 84.29 mm

• Drop: 4.0 inches

• Spring Width: 2.0 inches

• Bolt Pattern: 8 on 6.5 inches with 0.50-inch studs

• Brake Type: Electric

• Load Capacity: 7,000 lbs

Applications

Ideal for use on:

• Utility trailers

• Equipment trailers

• Livestock trailers

• Other heavy-duty trailer applications
