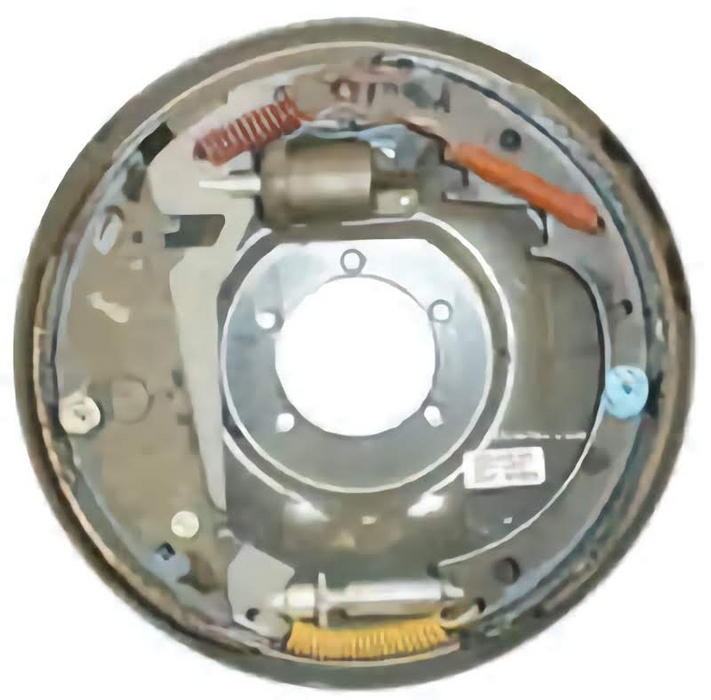

23-342 - 7K, LH, 12" x 2" Hydraulic Brake Backer Complete

The Dexter 23-342 is a left-hand (driver's side) hydraulic drum brake assembly designed for 7,000 lb trailer axles. Featuring a 12" x 2" drum size, this uni-servo, free-backing brake assembly ensures reliable stopping power for your trailer. It mounts using a 5-bolt pattern and is compatible with most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO.

Key Features

• Application: Designed for 7,000 lb axles

• Configuration: Left-hand (driver's side)

• Brake Size: 12" diameter x 2" wide

• Mounting Flange Bolt Pattern: 5-bolt

• Wheel Compatibility: Fits 14-1/2", 15", 16", and 17-1/2" wheels

• Adjustment: Manual adjust

• Installation: Complete assembly ready to bolt on and connect hydraulic line

• Made in the USA

Specifications

• Part Number: 23-342

• Mounting Hardware: Not included; uses 3/8" mounting bolts (5 required)
