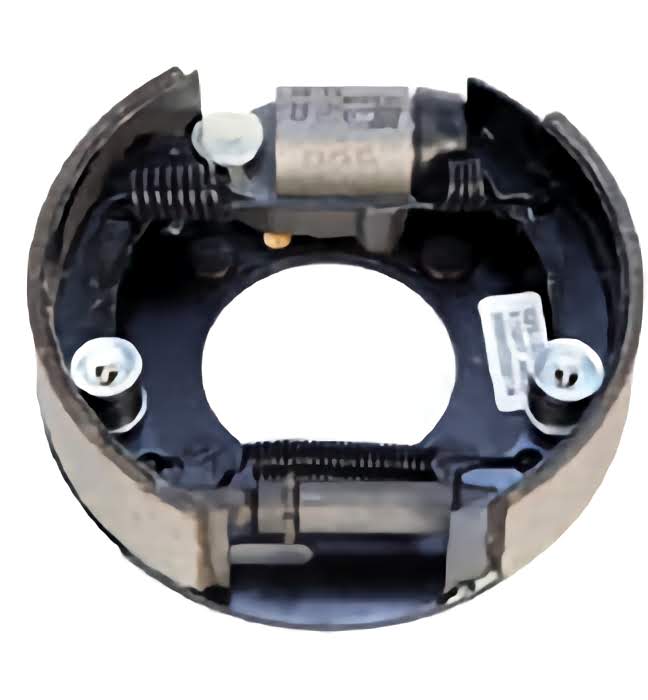

23-399 - 2K-2.5K, RH, 7" x 1.75" SS Hydraulic Brake Assembly

by Dexter
Original price $194.95 - Original price $194.95
Original price
$194.95
$194.95 - $194.95
Current price $194.95

The Dexter 23-399 is a right-hand (passenger side) hydraulic drum brake assembly designed for trailers with axles rated between 2,000 and 2,500 lbs. Featuring a 7" diameter and 1.75" wide brake shoes, this uni-servo brake assembly provides reliable stopping power for your trailer. It mounts using a 4-bolt pattern and is compatible with most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO.

Key Features

  • Application: Designed for 2,000–2,500 lb axles

  • Configuration: Right-hand (passenger side)

  • Brake Size: 7" diameter x 1.75" wide

  • Mounting Flange Bolt Pattern: 4-bolt

  • Wheel Compatibility: Fits 10", 12", and 13" wheels

  • Adjustment: Manual adjust

  • Installation: Complete assembly ready to bolt on and connect hydraulic line

  • Made in the USA

Specifications

  • Part Number: 23-399

  • Mounting Hardware: Included
