23-405 - 10K, RH, 12.25" x 4" Hydraulic Brake

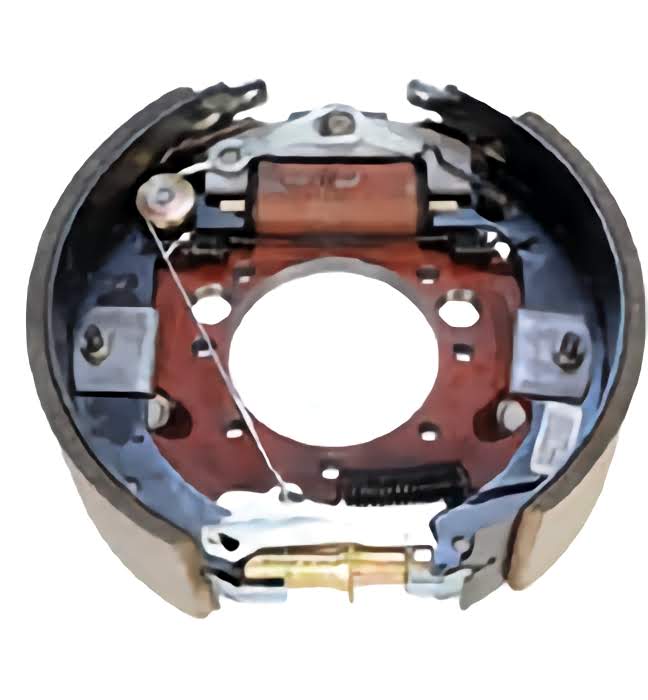

The Dexter 23-405 is a right-hand (passenger side) hydraulic drum brake assembly designed for 10,000 lb heavy-duty axles. Featuring a 12.25" diameter and 4" wide brake shoes, this duo-servo, self-adjusting brake assembly ensures reliable stopping power for your trailer. It mounts using a 7-bolt pattern and is compatible with most standard hub-and-drum assemblies.

Key Features:

• Application: Designed for 10,000 lb heavy-duty axles

• Configuration: Right-hand (passenger side)

• Brake Size: 12.25" diameter x 4" wide

• Mounting Flange Bolt Pattern: 7-bolt

• Adjustment: Forward self-adjusting

• Installation: Complete assembly ready to bolt on and connect hydraulic line

Specifications:

• Part Number: 23-405

• Mounting Hardware: Not included
