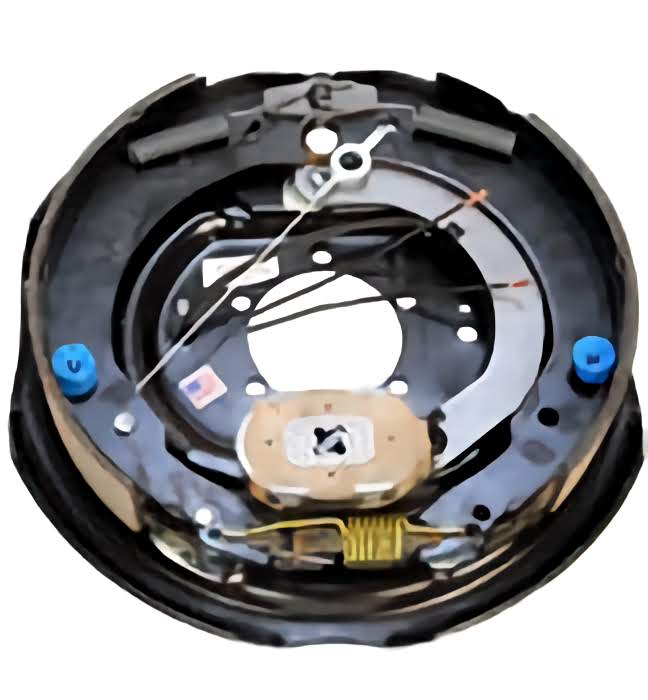

23-465 - Electric Brake Assembly RH 12X2 FSA
Ensure reliable and consistent braking performance for your trailer with the Dexter 23-465 Right-Hand Electric Brake Assembly. Designed for 7,000 lb axles, this 12" x 2" brake assembly features Dexter's Nev-R-Adjust technology, which automatically maintains proper brake shoe adjustment, reducing maintenance needs and enhancing safety.
Features:
-
Right-hand (passenger side) electric brake assembly
-
Fits standard 7,000 lb trailer axles
-
12" diameter x 2" wide brake shoes
-
Forward self-adjusting design for consistent braking
-
5-bolt mounting pattern for secure installation
-
Complete assembly ready to bolt on and wire
-
Compatible with 14.5" to 16.5" wheels
-
Made in the USA
Specifications:
-
Part Number: 23-465
-
Brake Type: Electric, Forward Self-Adjusting (Nev-R-Adjust)
-
Side: Right-Hand (Passenger Side)
-
Axle Rating: 7,000 lbs
-
Brake Dimensions: 12" diameter x 2" width
-
Mounting Pattern: 5 Bolt
-
Voltage: 12V
-
Wire Configuration: 2-wire hookup
-
Application: Fits standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
Fitment/Application:
This brake assembly is ideal for trailers equipped with 7,000 lb axles, including utility trailers, RVs, horse trailers, and car haulers. Its self-adjusting feature ensures optimal braking performance with minimal maintenance.
