23-337 - 7K, RH, 12" x 2" Duo-Servo Hydraulic Brake

by Dexter
Original price $242.95 - Original price $242.95
Original price
$242.95
$242.95 - $242.95
Current price $242.95

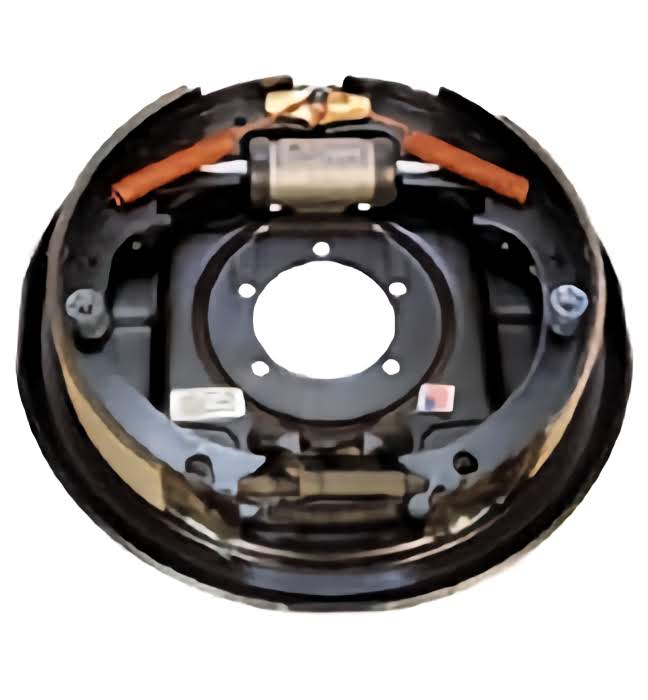

The Dexter 23-337 is a right-hand (passenger side) hydraulic drum brake assembly designed for 7,000 lb trailer axles. Featuring a 12" x 2" drum size, this duo-servo brake assembly ensures reliable stopping power for your trailer. It mounts using a 5-bolt pattern and is compatible with most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO.

Key Features

  • Application: Designed for 7,000 lb axles

  • Configuration: Right-hand (passenger side)

  • Brake Size: 12" diameter x 2" wide

  • Mounting Flange Bolt Pattern: 5-bolt

  • Wheel Compatibility: Fits 14-1/2", 15", and 16" wheels

  • Adjustment: Manual adjust

  • Installation: Complete assembly ready to bolt on and connect hydraulic line

  • Made in the USA

Specifications

  • Part Number: 23-337

  • Mounting Hardware: Not included; uses 3/8" mounting bolts (5 required)
