23-47 - Electric Brake Assembly 7" x 1-1/4"

by Dexter
Original price $185.95 - Original price $185.95
Original price
$185.95
$185.95 - $185.95
Current price $185.95

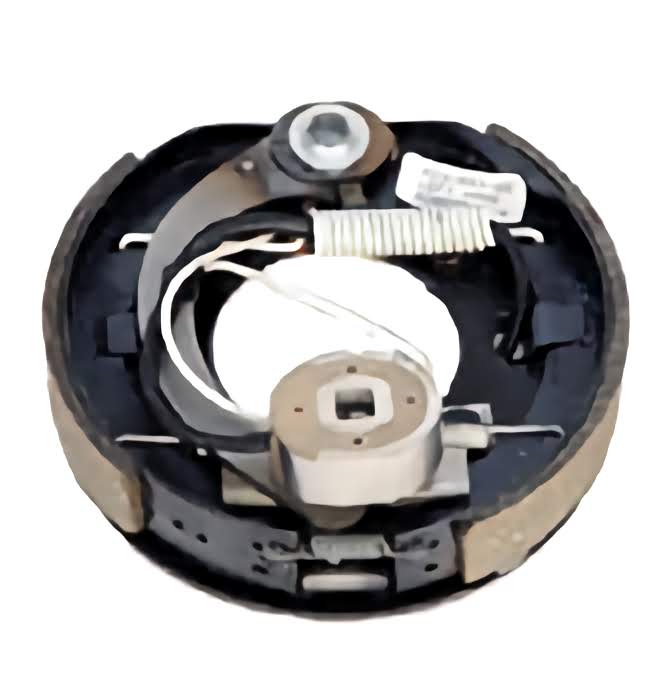

The Dexter 23-47 is a left-hand (driver side) 7" x 1-1/4" electric brake assembly suitable for 2,000 lb axles. It offers dependable braking performance for light-duty trailers, including small utility and boat trailers.

Features:

  • Manual adjust brake assembly

  • Pre-assembled for straightforward installation

  • Fits standard 4-bolt mounting flange

  • Compatible with 7" hub and drum assemblies

  • Made in the USA

Specifications:

  • Part Number: 23-47

  • Brake Type: Electric, Manual Adjust

  • Side: Left-Hand (Driver Side)

  • Axle Rating: 2,000 lbs

  • Brake Dimensions: 7" x 1-1/4"

  • Mounting Pattern: 4 Bolt

  • Voltage: 12V

Fitment/Application:
Ideal for light-duty trailers with 2,000 lb axles, such as small utility and boat trailers. Designed for use with 7" hub and drum assemblies.
