23-411 - 9K-10K, RH, 12-1/4" x 3-3/8" Hydraulic Brake

by Dexter
Original price $615.95 - Original price $615.95
Original price
$615.95
$615.95 - $615.95
Current price $615.95

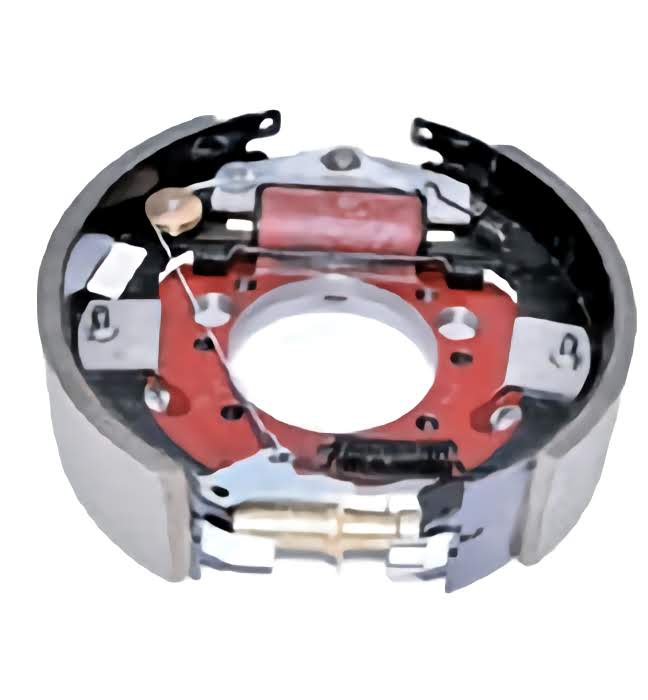

The Dexter 23-411 is a right-hand (passenger side) hydraulic drum brake assembly designed for 9,000–10,000 lb general-duty axles. Featuring a 12.25" diameter and 3-3/8" wide brake shoes, this duo-servo, forward self-adjusting brake assembly ensures reliable stopping power for your trailer. It mounts using a 7-bolt pattern and is compatible with most standard hub-and-drum assemblies.

Key Features:

  • Application: Designed for 9,000–10,000 lb general-duty axles

  • Configuration: Right-hand (passenger side)

  • Brake Size: 12.25" diameter x 3-3/8" wide

  • Mounting Flange Bolt Pattern: 7-bolt

  • Adjustment: Forward self-adjusting

  • Installation: Complete assembly ready to bolt on and connect hydraulic line

Specifications:

  • Part Number: 23-411

  • Mounting Hardware: Not included; nuts, bolts, and washers sold separately
