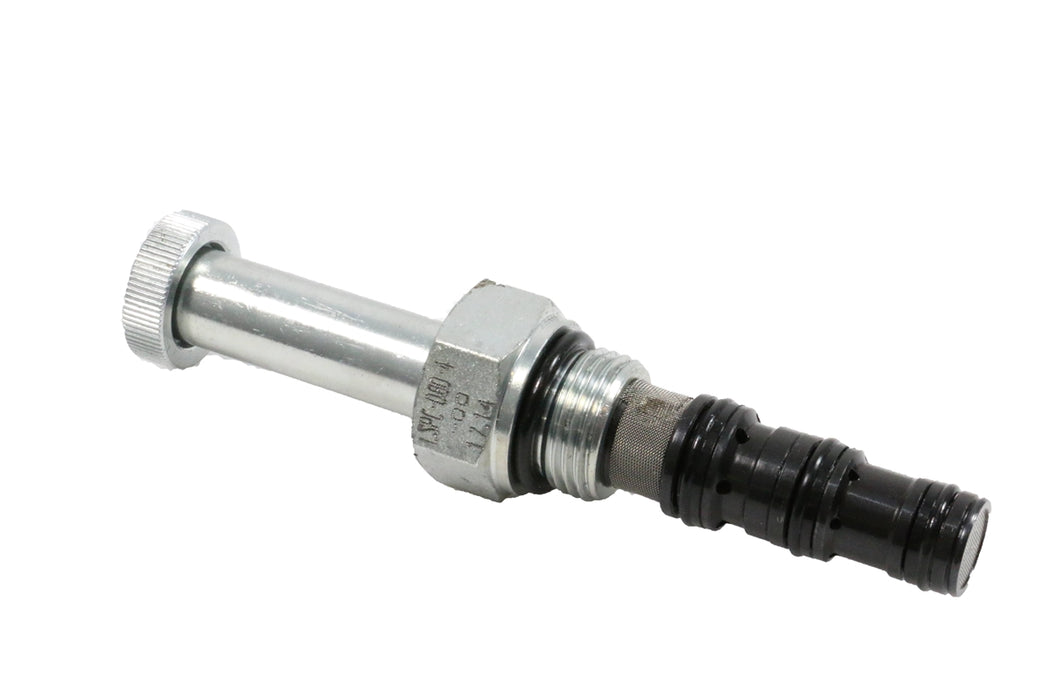

LSPC-080-4-00 - 2-Way Down Valve

The LSPC-080-4-00 2-Way Down Valve is a precision hydraulic control valve designed to manage the lowering function in single-acting hydraulic systems. Often used in trailer lift applications, this valve allows controlled fluid return flow to ensure smooth, safe lowering of hydraulic cylinders. Its compact design makes it ideal for tight mounting spaces in dump trailers and other equipment.

Features:

• Controls the down/lowering function in hydraulic systems
• Designed for use with single-acting cylinders
• Compact and durable for trailer-mounted hydraulic units
• Threaded ports for secure, leak-resistant connections
• Suitable for use in dump trailers, lift gates, and hoists

Specifications:

• Part Number: LSPC-080-4-00
• Type: 2-Way Hydraulic Down Valve
• Function: Down flow control
• Port Size: 1/4" NPT (verify if ORB or SAE is required)
• Flow Capacity: Up to 8 GPM
• Pressure Rating: Up to 3,000 PSI
• Material: Steel body
• Mounting: Inline or surface mount (depending on application)
• Use: Hydraulic dump systems, hoists, and lift mechanisms

Fitment:

• Compatible with most 12V hydraulic power units
• Ideal for single-acting cylinder control in trailer or lift applications
