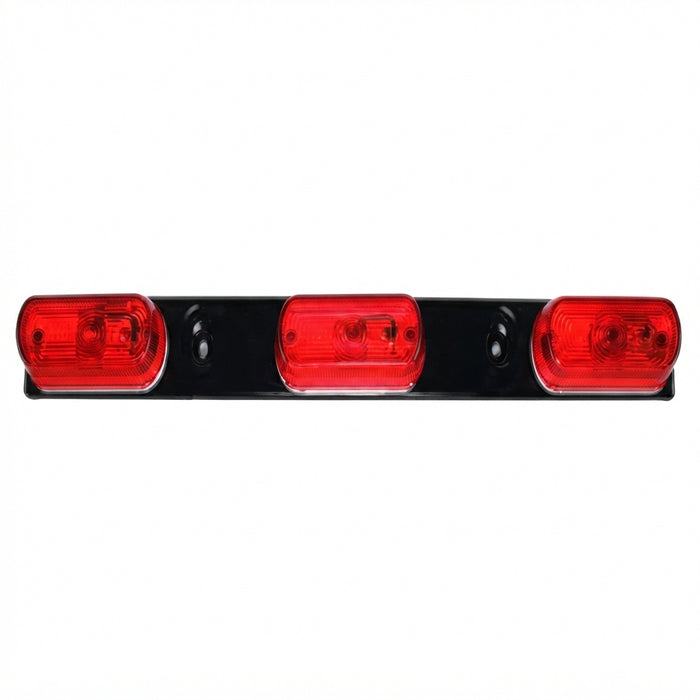

136-3R - Incandescent Trailer Identification Light Bar - Red

The 136-3R Identification Light Bar is a 3-lamp, incandescent lighting solution designed for mounting at the rear center of wide trailers. Featuring a durable steel housing and red lenses, it improves visibility and helps meet DOT requirements for trailers over 80" wide.

Features:

• 3 sealed red incandescent lights
• Pre-wired for easy installation
• Durable steel bar with corrosion-resistant finish
• Surface mount with center bolt holes
• Meets FMVSS/CMVSS 108 requirements for rear trailer lighting

Specifications:

• Part Number: 136-3R
• Light Type: Incandescent
• Number of Lamps: 3
• Color: Red
• Voltage: 12V
• Bar Length: Approx. 14-1/4″
• Mounting Type: Surface mount
• Wiring: 3-wire system (ground, tail, and stop/turn)
• Material: Steel base with polycarbonate lenses
• DOT/SAE Compliant: Yes

Fitment & Applications:

• Required on the rear of trailers 80″ or wider
• Common on enclosed, flatbed, livestock, and utility trailers
• Replaces or upgrades existing 3-lamp ID light bars
